The Crucial Role of Particle Counting in Ensuring Battery Manufacturing Quality

In the booming field of Li-ion battery manufacturing, every tiny particle matters. Even a microscopic contaminant can significantly affect the performance, safety, and longevity of a battery cell. A dust particle, which may be invisible to the naked eye, can trigger a range of issues:

• Short Circuits: A small contaminant can create internal short circuits, leading to unexpected battery failures.

• Decreased Performance: Contaminants can reduce energy density by up to 30%, drastically affecting a battery's efficiency and lifespan.

• Safety Hazards: Particles leading to thermal instabilities can result in overheating and pose safety risks.




Thus, particle counting is much more than just a cleanroom compliance metric; it is essential for ensuring quality, safety, and process stability.

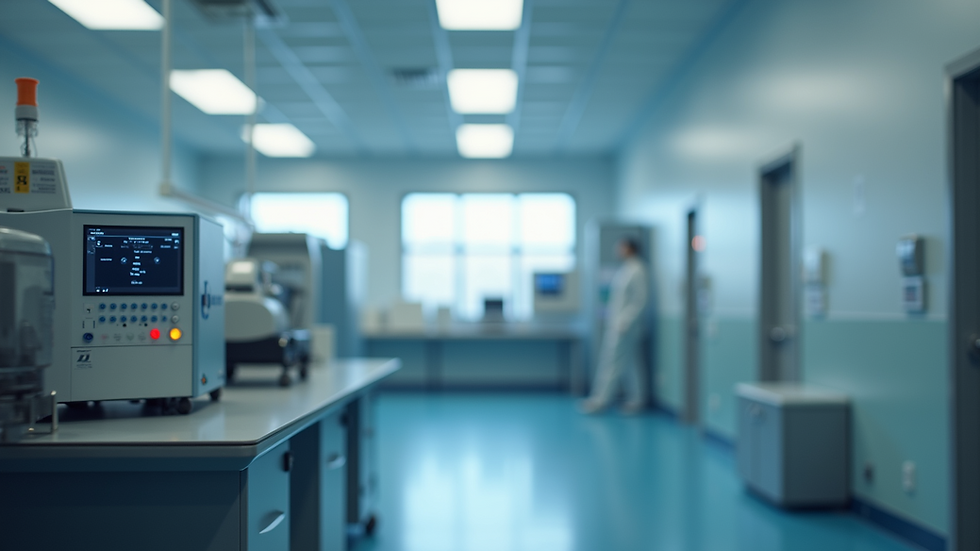

Particle counter in action

Understanding Particle Detection as per ISO 14644

The ISO 14644-1:2015 standard provides classifications for cleanrooms based on allowable particle concentrations measured per cubic meter of air. The standards outline how many particles of specific sizes can exist in cleanroom air. For example:

| ISO Class | ≥0.1 μm particles/m³ | ≥0.5 μm particles/m³ | Typical Battery Manufacturing Use |

|-----------|-----------------------|-----------------------|----------------------------------|

| ISO Class 8 | 3,520,000 | 29,300 | Mixing & coating zones |

| ISO Class 7 | 352,000 | 2,930 | Electrode coating, drying |

| ISO Class 6 | 35,200 | 293 | Winding, cell assembly |

| ISO Class 5 | 3,520 | 29 | Pouch cell & precision assembly |

For critical areas like anode and cathode production, maintaining an ISO Class 6 environment or better is necessary. Continuous monitoring of airborne particles in these cleanrooms ensures that contaminants do not compromise the electrochemical performance of batteries.

Particle counters are employed to measure particles of various sizes including ≥0.3 µm, ≥0.5 µm, ≥1 µm, and ≥5 µm. Real-time monitoring helps maintain air cleanliness and compliance with ISO standards.

Cleanroom environment in battery manufacturing

The Importance of Particle Counting in Quality Control

Effective particle counting is a cornerstone of quality control in battery manufacturing. Contaminants can lead to notable issues, such as:

• Battery Performance Drop: Studies show that even a 0.1% concentration of certain particles can reduce battery performance significantly.

• Increased Manufacturing Costs: A statistic from the industry indicates that the cost of removing contamination from a battery can rise by as much as 25% of the total production cost.




By investing in robust particle counting systems, manufacturers can identify contamination sources early and implement corrective measures. This not only improves product quality but also builds consumer trust in the reliability of Li-ion batteries.

Additionally, maintaining optimal cleanroom conditions can lead to better manufacturing efficiency. By reducing particle levels, manufacturers can lower waste and the need for rework, ultimately saving costs.

How Visiontech Ensures the Right Fit for Your Process

At Visiontech Automation Pvt. Ltd., the understanding that each cleanroom has unique requirements shapes our approach. Each area of a battery manufacturing plant has specific environmental control needs that your monitoring system must meet.

Visiontech offers comprehensive solutions for environmental control and data integration:

• Instrument Selection: We guide you in choosing the ideal particle counter calibrated for your ISO class and process stage, particularly within the 0.1–5 µm range.




This tailored approach ensures that manufacturers effectively monitor their cleanroom environments, which leads to enhanced product quality and safety.

Battery manufacturing facility overview

The Future of Particle Counting in Battery Manufacturing

As the demand for Li-ion batteries escalates, the need for advanced and precise particle counting technologies becomes even more critical. Innovations in sensor technology and data analysis are on the rise, leading to more efficient monitoring systems.

The convergence of IT and OT systems is becoming essential. By integrating information technology with operational technology, manufacturers can develop comprehensive environmental monitoring systems. These systems provide real-time data and insights, allowing for quicker reactions to contamination incidents and ensuring compliance with cleanroom standards.

Advanced IT dashboards can visualize particle count data, enhancing decision-making processes and improving manufacturing efficiency.

Final Thoughts

Particle counting plays a vital role in maintaining quality and safety in Li-ion battery manufacturing. By adhering to ISO standards and implementing effective monitoring systems, manufacturers can significantly reduce risks associated with contamination.

As the industry continues to advance, the significance of particle counting grows, making it an integral part of quality control and process optimization. By committing to advanced particle counting technologies and integrating IT-OT systems, manufacturers can solidify their success in a competitive landscape.

A dedication to cleanroom standards not only boosts product quality but also nurtures trust with consumers. In the realm of battery manufacturing, each particle truly matters.
